SprintDrives also supplies you with other spare parts for chain conveyors. We always have the appropriate raw material in stock to enable a fast delivery time. Customization according to customer requirements and advice is our daily business, in which we are happy to support you.
SprintDrives Lock Ring Master:
Locking rings are an easy and safe way to secure the bolts of a chain. For this reason, it is also difficult to dismantle them. To counteract the problem of disassembly, Bechtel has developed the locking ring master. A hydraulic pliers that are operated by hand. The lockring master is designed to separate different types of lockrings from the bolt anywhere by hand.

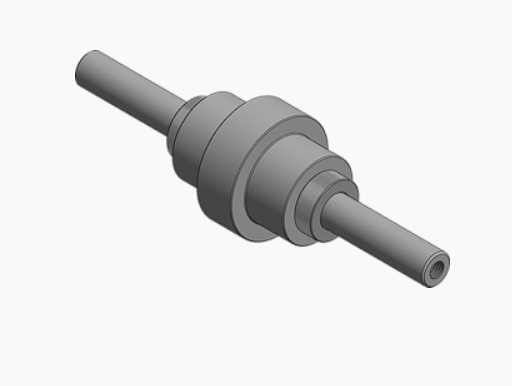

Return rollers
We are also happy to offer you the return rollers according to your specifications. The castors can be made of different
Plastic grades such as PE1000 / Nylon / POM or steel such as C45 / 42CrMo4 natural or hardened.
In the case of steel rollers, a sealed ball bearing is preferably used on both sides. The shafts are equipped with internal or external threads on both sides.
Return rollers made of plastic or steel (dimensions in mm) |  | ||
Light wide chain | Return roller Ø | Shaft Ø | Side threaded holes |
25 | 50/60 | 20 | M10x25 |
30 | 50/60 | 20 | M10x25 |
35 | 50/60 | 20 | M10x25 |
45 | 60/70 | 20 | M10x25 |

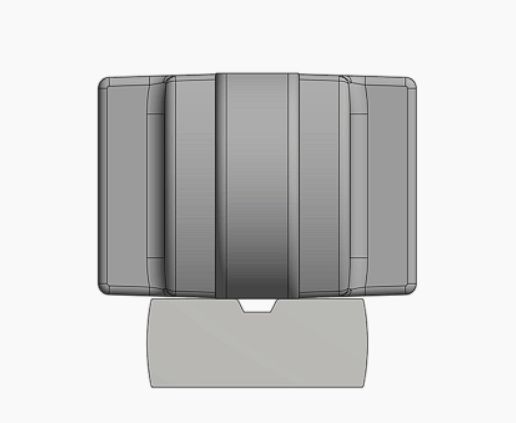

Wear rails
We offer you wear rails in manganese steel for use in conjunction with forged fork chains. The rails are provided with a groove to ensure the good running of the fork chain.
Locking rails made of material X120Mn12 (1.3401) |  | |||
Dimensions (mm) | Length (meters) | Delivery period | Weight (kg/m) | |
35 x 10 | 2,95 – 3,10 | Stick | 2.6 | |
50 x 10 | 2,95 – 3,20 | Stick | 3.75 | |
50 x 20 | 2,95 – 3,20 | Stick | 7.67 | |
60 x 10 | 2,95 – 3,20 | Stick | 4.54 | |
70 x 10 | 2,95 – 3,20 | Stick | 5.32 | |
70 x 20 | 2,95 – 3,20 | – | 10.81 |

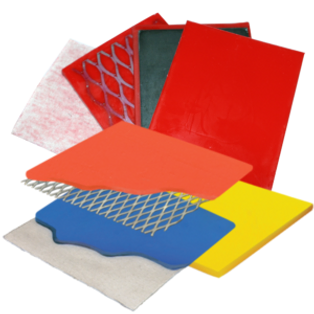

Floor plates and guide profiles made of plastic
We have a wide range of plastic floor tiles in stock in various thicknesses and qualities, such as PE1000, PE1000 HOT and Kryptane Black 93 degrees. Special shapes are no problem and can be manufactured according to your specifications.
