B35 – FOOT AND D FLANGE MOUNTED
| Specification | Details |
|---|---|
| Frequency | 50 Hz |
| Voltage | 380-415 V |
| Number of Poles | 2 |
| Degree of Protection | IP55 |
| Synchronous Speed | 3000 rpm |
| Output Rating | 11 kW |
| Mounting | Foot & Flange-mounted |
| Flange | B35 |
| Terminal Box | Right position |
| Enclosure | IC411 – TEFC |
Bearing Design
Deep groove ball bearings, series 62 shielded on both sides (ZZ), with bearing clearance “Normal” are provided on motors up to and including 112M frame. Frame size 132 will be provided with C3 clearance.
The grease used is lithium complex soap-based, Exxon Mobil, UNIREX N3, to NLGI Class 3.
References for the bearings are given in the following table:
| Frame size | Bearing reference | |
|---|---|---|
| DE | NDE | |
| 63 | 6201 ZZ | 6201 ZZ |
| 71 | 6202 ZZ | 6202 ZZ |
| 80 | 6204 ZZ | 6204 ZZ |
| 90 | 6205 ZZ | 6205 ZZ |
| 100 | 6206 ZZ | 6206 ZZ |
| 112 | 6206 ZZ | 6206 ZZ |
| 132 | 6208 ZZ | 6208 ZZ |
Terminal Box
The terminal boxes for all the motors are mounted on top. The particulars are given in the table below:
| Frame Size | T.B. Type | Terminal Screw in mm | Max. Permissible Conductor Cross-Section Area in mm² | Max. Current Capacity in A | Cable Entry Diameter |
|---|---|---|---|---|---|
| 63, 71, 80, 90 | 1 x B0 096 | M4 | 1 x 4 | 16 | 1 x 19 (3/4″) BSC |
| 100, 112, 132 | 1 x B0 132 | M5 | 2 x 6 | 20 | 2 x 25.4 (1″) BSC |
Note:
a. Number of terminals – 6
b. Terminal box rotatable in steps of 90°

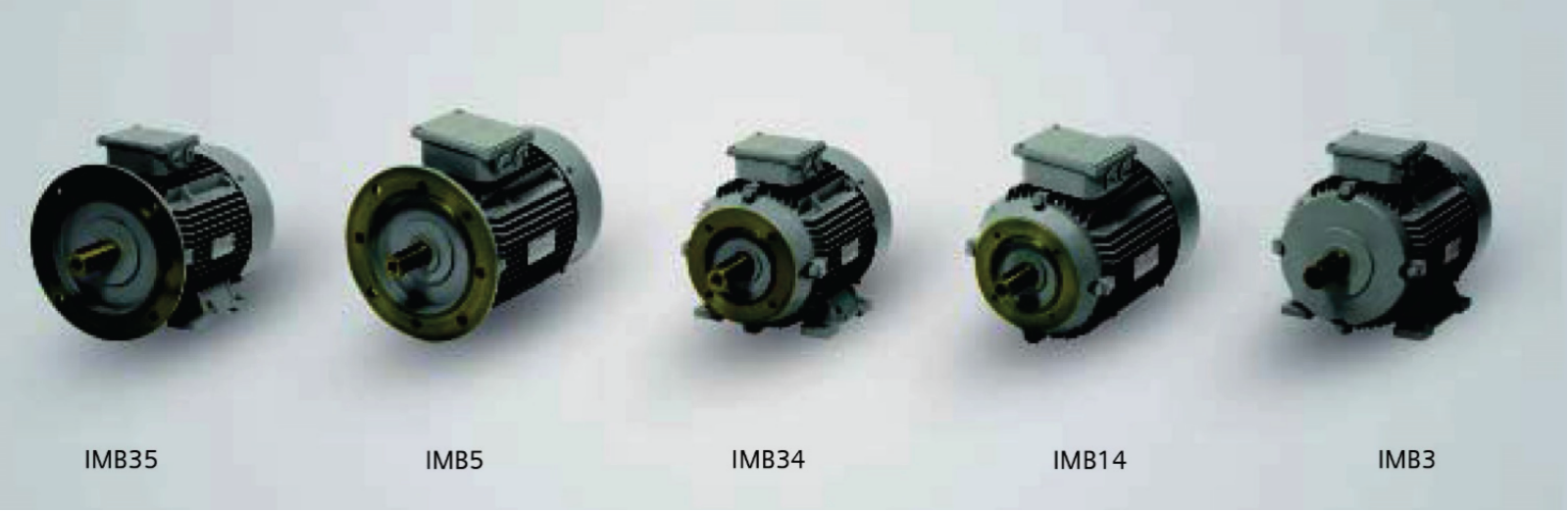

Gallery
