Belt Connectors
Sprint Drives also supplies the necessary belt connectors for the assembly of the elevator belts. In various designs and for belts of all kinds.
Model Speedy
Model A&B
Model 1,2,3
Clamping Lug Connectors
An alternative to the belt connectors are the clamping lug connectors. These are custom-made for you. Two models are available:
Model A | Model B |
Model A | Model B |
For light to moderate applications. | Clamping tab connector with wedge-shaped intermediate piece that keeps the belt in place. movement via the belt pulley. Suitable for higher load applications. |

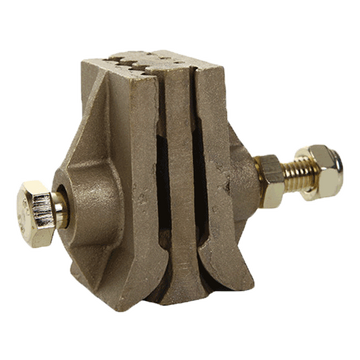

Belt Connector Model Speedy
Three-piece belt connector made of cast iron or bronze, standard width 50 mm, suitable for a maximum belt load of 800 kg/cm. Available in grey cast iron and brass.

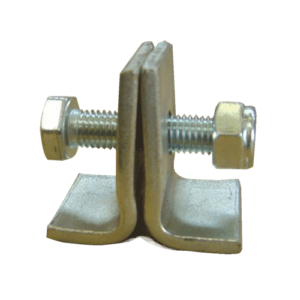

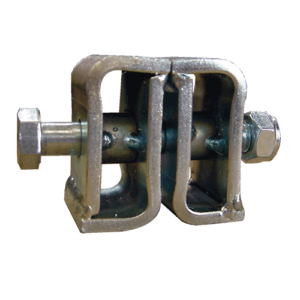

Belt Connector Models 1,2 and 3
available in bright / galvanized steel and stainless steel 1.4301 (Grade 304) / 1.4571 (Grade 316Ti)
Dimensions models 1, 2 and 3 (in mm) | |||||
A | B | Max. belt load | |||
Model 1 | 62 | 32 | 400 kg/cm |  |  |
Model 2 | 68 | 32 | 800 kg/cm |  |  |
Model 3 | 68 | 32 | 1250 kg/cm |  |  |

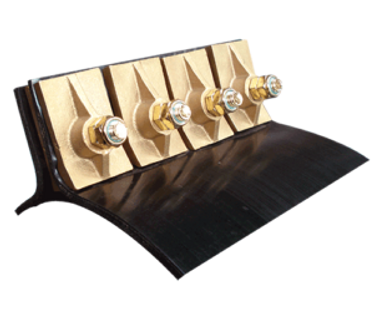

Installation of the belt connectors
Example of the installation of four belt connectors for belt widths between 200 and 230 mm. The individual belt connectors may be spaced between 0 and 10 mm.
