Compression Gas Springs

Compression Gas Springs from Sprint Drives provide reliable force output for controlled lifting and lowering applications. These are the most widely used type of gas spring, ideal for heavy access panels, lids, and machine covers. Engineered for performance and longevity, they reduce operator effort and offer smooth, dampened motion across a broad range of industrial environments.

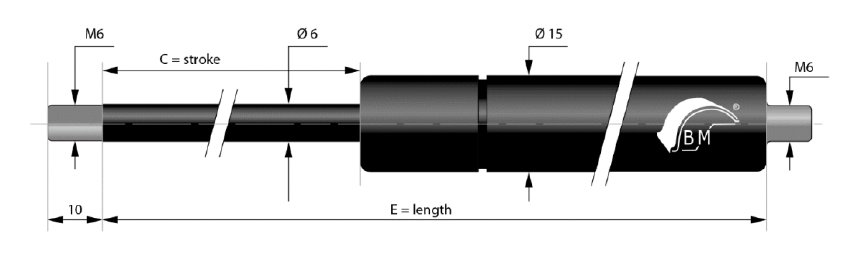

Technical Specifications:

• Force Range: 50 – 2,500 N

• Stroke Length: 20 – 500 mm

• Cylinder Material: Steel (black nitrided), Stainless Steel (316L)

• Rod Material: Chrome-plated or stainless

• Mounting Style: Ball joint, Eyelet, Bracket, Threaded Ends

• Dampening Options: Fixed, Adjustable, Progressive

• Operating Temperature: -30 °C to +80 °C

• Valve Type: With or without nitrogen refill valve

• Max Operating Pressure: Up to 300 bar

Safety Warning:
Do not puncture, heat, or compress externally. Always install with the rod facing downward. Use only with manufacturer-approved fittings and avoid exceeding force ratings.

Markets Served:

• Food & Beverage Equipment

• Packaging Machinery

• Industrial Enclosures and Access Panels

• Agricultural Equipment

• Vehicle Maintenance Systems

Features and Benefits:

• Smooth, controlled motion

• Maintenance-free design

• Customizable force output

• Corrosion-resistant materials

• Compact form with high power density

• Wide installation versatility

Applications:

• Lift-assist for heavy lids and hatches

• Soft-close for bottling equipment doors

• Vertical panel dampening on packaging machines

• Ergonomic access on control enclosures
