Conveyor chains according to DIN 8165 / 8167

Applications: Conveying, Manufacturing

The conveyor chains are designed in accordance with DIN 8165 (FV) and DIN 8167 (M) with lockbolts, cotter pins and rivet bolts.

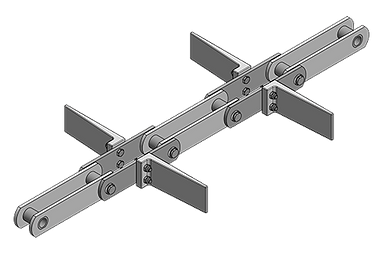

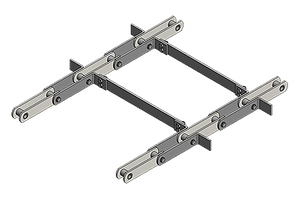

The steel carriers can be bent and/or welded on. Delivery with plastic carriers is possible. The chains can also be made with rollers. In addition, it is possible to supply special shapes of carriers / angles as well as double-strand designs. Delivery in different materials can be offered and delivered on request. The round parts of the chains are usually hardened or induction hardened according to the material in use.

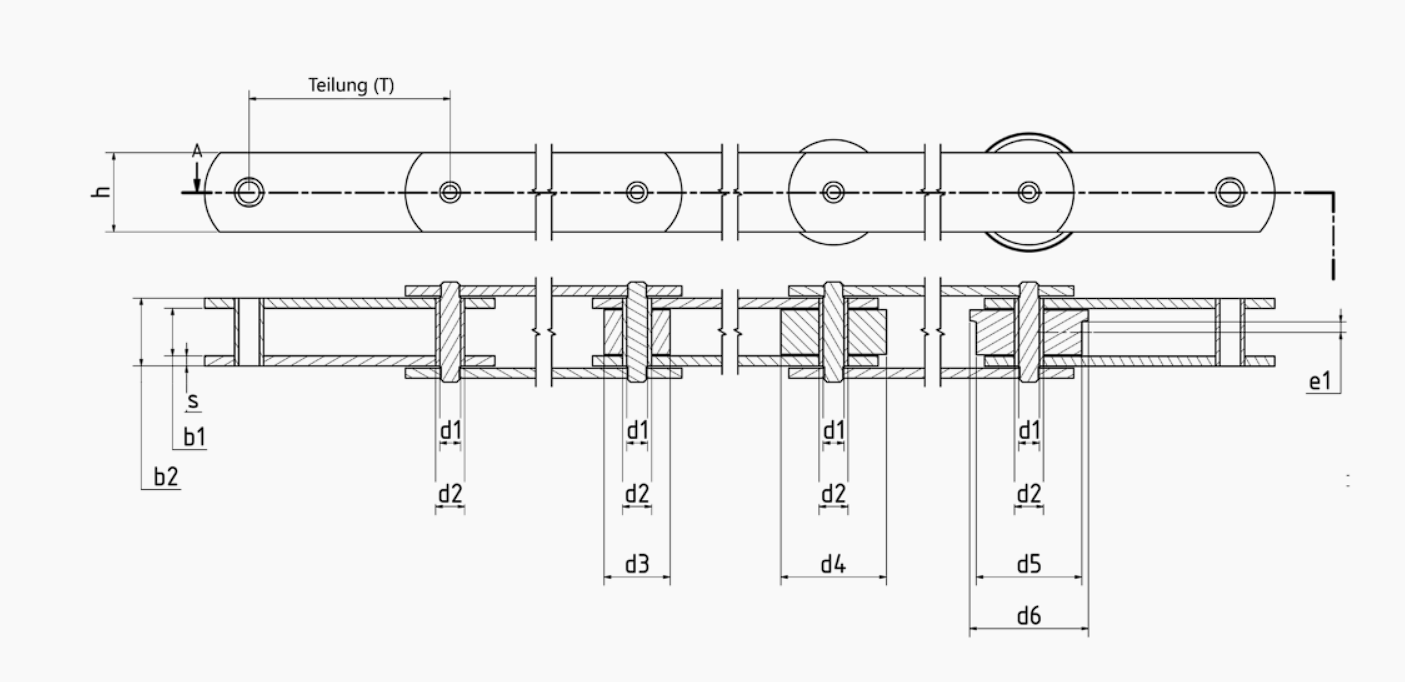

DIN 8165 – FV – Trough conveyor chains (dimensions in mm)
Breaking load in Kn	63	90	112	140	180	250	315	400	500	630
Clear Width (b1)	22	25	30	35	45	55	65	70	80	90
Sockets Diam. (d2)	18	20	22	26	30	36	42	44	50	56
Bolt Diam. (d1)	12	14	16	18	20	26	30	32	36	42
Lug height (h)	30	35	40	45	50	60	70	70	80	100
Lug Thickness(s)	4	5	6	6	8	8	10	12	12	12
Gentle roller (d3)	26	30	32	36	42	50	60	60	70	80
Track roller (d4)	40	48	55	60	70	80	90	100	110	120
Fret roller. (d5/6)	50/60	63/73	72/87	80/95	100/120	125/145	140/170	150/185	160/195	170/210
Angle according to DIN	30×4	40×5	40×6	50×7	50×7	65×7	70×9	70×11	80×12 AM	100×12


DIN 8167 – M – Trough conveyor chains (dimensions in mm)
Breaking load in Kn	56	80	112	160	224	315	450	630	900
Clear Width (b1)	24	28	32	37	43	48	56	66	78
Sockets Diam. (d2)	15	18	21	25	30	36	42	50	60
Bolt Diam. (d1)	10	12	15	18	21	25	30	36	44
Lug height (h)	30	35	40	50	60	70	80	100	120
Lug Thickness(s)	4	5	6	7	8	10	12	14	16
Gentle roller (d3)	21	25	30	36	42	50	60	70	85
Track roller (d4)	42	50	60	70	85	100	120	140	170
Fret roller. (d5/6)	42/50	50/60	60/70	70/85	85/100	100/120	120/140	140/170	170/210
Angle according to DIN	40×4	40×4	50×6	50×6	60×8	70×9	70×9	100×12	Letter 120×15
