Deep Groove Ball Bearing

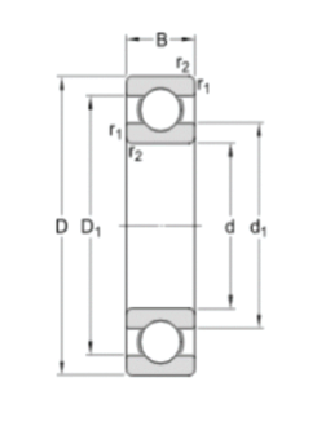

DIMENSIONS
| Parameter | Value | Description |
|---|---|---|
| d | 160 mm | Bore diameter |
| D | 200 mm | Outside diameter |
| B | 20 mm | Width |
| d1 | ≈172.6 mm | Shoulder diameter |
| D1 | ≈187.1 mm | Shoulder diameter |
| r1,2 | min. 1.1 mm | Chamfer dimension |

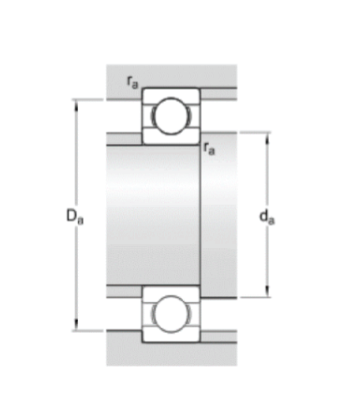

ABUTMENT DIMENSIONS
| Parameter | Value | Description |
|---|---|---|
| da | min. 166 mm | Diameter of shaft abutment |
| Da | max. 194 mm | Diameter of housing abutment |
| ra | max. 1 mm | Radius of shaft or housing fillet |
