Fixed Drive Conveyor Roller

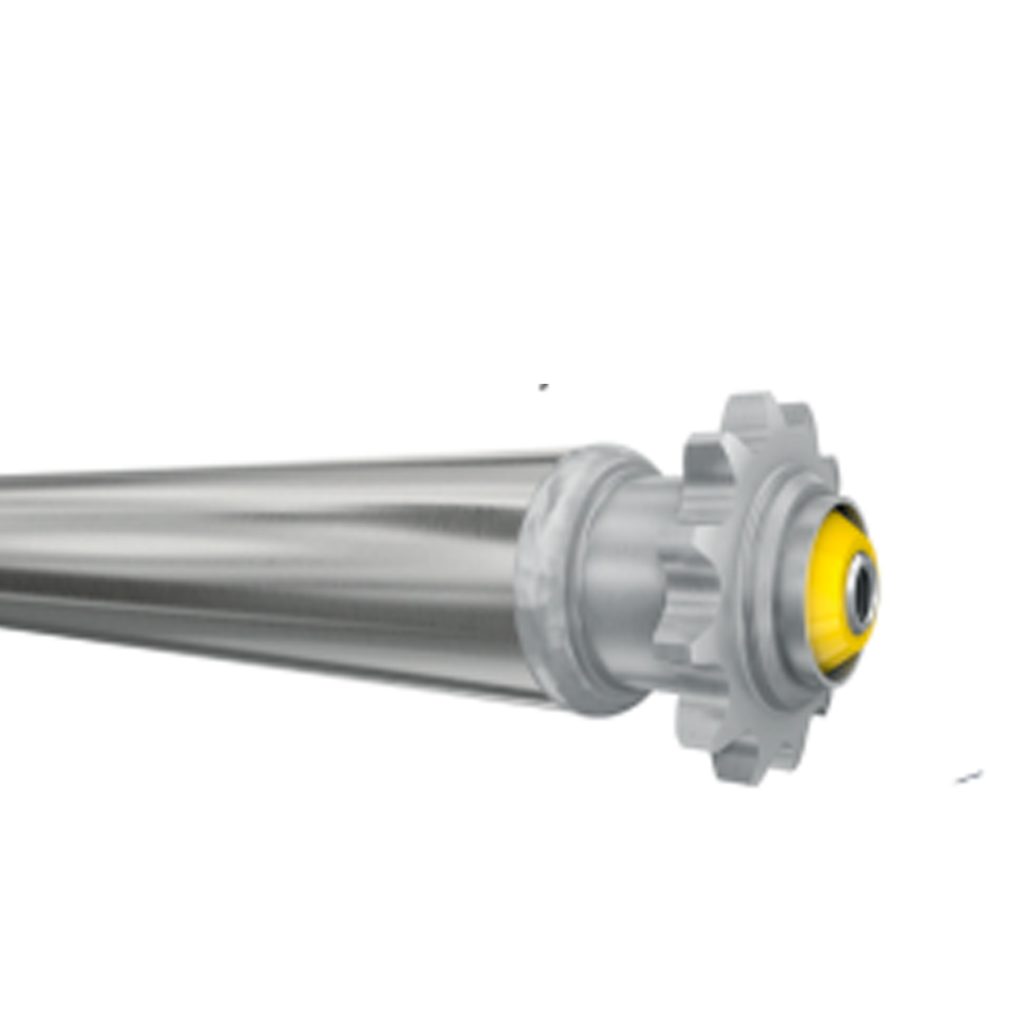

Fixed Drive Conveyor Roller – Welded Sprocket Drive, Compact and Precise

Product Overview
Sprint Drives’ Fixed Drive Conveyor Roller is a precision-engineered roller built to deliver reliable drive performance in light-duty conveyor systems. Featuring a welded steel sprocket drive, this roller integrates seamlessly into driven conveyor setups, offering consistent motion transfer with compact build dimensions. Designed for straightforward integration and dependable operation, it’s an ideal solution for tight lanes and small conveyed goods.

Technical Performance

• Maximum Load Capacity: 150 N

• Maximum Conveyor Speed: 0.5 m/s

• Platform Compatibility: 1700

• Temperature Range: –5 °C to +40 °C

• Precision Bearing: Steel ball bearing 689 2Z (greased) for smooth rotation and durability

Material Construction

• Tube: Made from high-quality steel (zinc-plated), with optional stainless steel for corrosion resistance

• Shaft: Available in uncoated, zinc-plated, or stainless steel versions

• Drive Head: Fully welded steel sprocket heads (zinc-plated after welding for added protection)

• Bearing Housing: Polyamide, jet black (RAL9005), for robust bearing support

• Seal: Polyamide (RAL1021 rape yellow) on drive side ensures protection against contaminants

Drive Element Options

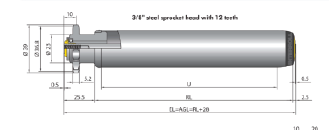

• Single Sprocket Head: 3/8″, 12 teeth (T12)

  • Total shaft length = RL + 28 mm

  • Usable tube length = RL – 21 mm

• Double Sprocket Head: 3/8″, 12 teeth (T12)

  • Total shaft length = RL + 48 mm

  • Usable tube length = RL

Design Considerations
The roller design accounts for axial play to ensure accurate lane alignment. The dimensions of each roller depend on the selected drive element and shaft style. This allows users to easily adapt the roller to different conveyor structures while maintaining performance integrity.

Applications
The Fixed Drive Conveyor Roller is ideal for:

• Small and medium packaging lines

• Belt-driven or chain-driven roller conveyors

• Sorting systems

• E-commerce and parcel handling

• Clean or semi-clean environments

Its compact 30 mm tube diameter makes it suitable for conveying smaller items with high placement precision. The steel sprocket head allows efficient power transmission without slippage, making it particularly effective in zones requiring synchronized movement or start-stop control.

Why Choose Sprint Drives Fixed Drive Rollers?

At Sprint Drives, we focus on providing robust, reliable, and easy-to-integrate conveyor components that keep your operations flowing. Our Fixed Drive Conveyor Rollers combine durable materials with refined design for long-lasting, maintenance-friendly performance. Whether you require single or double sprocket heads, we offer tailored solutions to fit your layout and load needs.

Let Sprint Drives be your trusted partner in conveyor automation.
