FL/1 Flanges

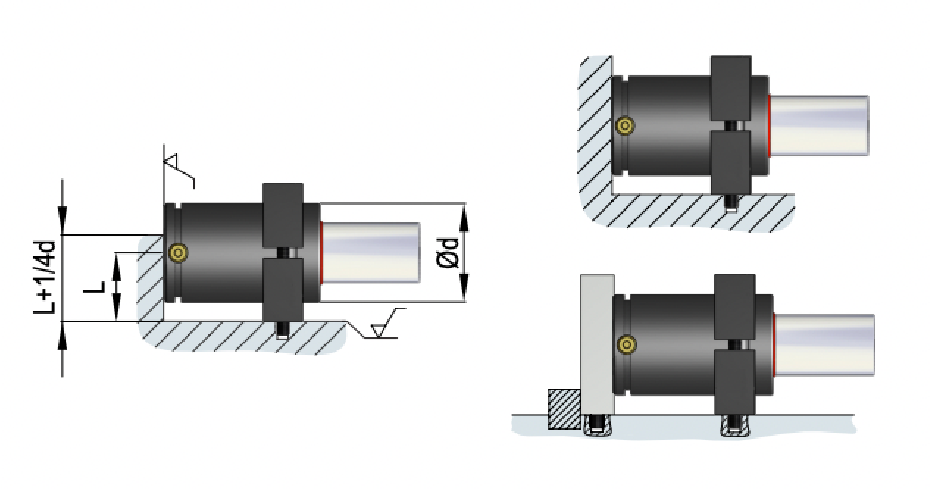

FL 1 Flanges are compact, rear-mounted brackets designed for applications with limited space or lightweight gas spring setups. They provide reliable rear anchoring for gas springs, facilitating controlled linear or rotational motion in compact machinery or enclosure designs. Their minimal footprint makes them ideal for tight installation envelopes.

Technical Specifications:

• Material: Stainless Steel or Zinc-coated Steel

• Mount Type: Rear flange

• Dimensions: Customized to gas spring model

• Surface Finish: Polished or coated

• Max Load Capacity: Up to 2,000 N

• Operating Pressure Resistance: Up to 200 bar

Safety Warning:
Install using manufacturer-recommended fasteners and alignments. Avoid over-tightening, which can distort the flange or misalign the gas spring.

Markets Served:

• Compact control panels

• Food processing systems

• Enclosed machine housings

Features and Benefits:

• Space-efficient design

• Corrosion resistance for hygienic applications

• Easy integration with standard gas springs

Applications:

• Back-panel lid mounting

• Compact enclosure access covers

• Small-scale industrial doors
