FOOT MOUNTED 5.5Kw, 4hp, 3 PHASE
These aluminum frame 3 phase electric motors suite a wide range of industrial and commercial application, adhere to the latest European mechanical and electrical standards and are rugged and reliable.

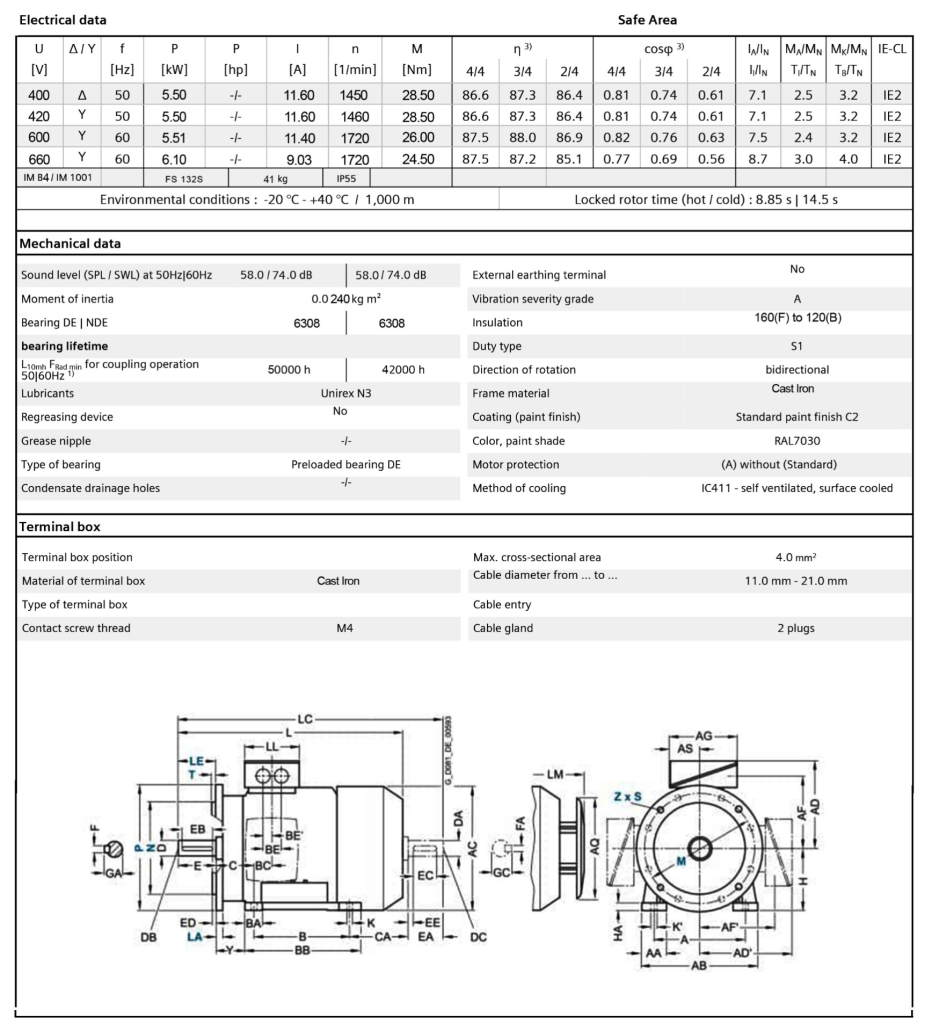

PRODUCT TECHNICAL DETAILS
| Specification | Measurement |
|---|---|
| Bolt Hole Centers (Across) (A) | 190mm |
| Bolt Hole Centers (Length) (B) | 140mm |
| Frame Size | 112mm |
| Overall Motor Length (L) | 395mm |
| Pole Power (KW) | 5.5KW (4 Pole) |
| Shaft Diameter (D) | 28mm |
| Shaft Length (E) | 60mm |
| Speed (RPM) | 1460 – 1480 RPM |
