Fork chains

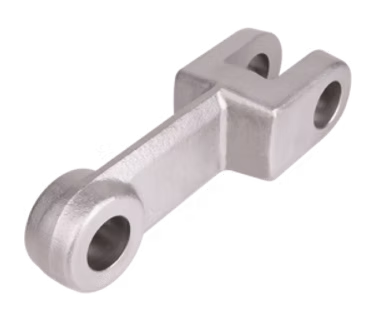

The links of the Bechtel fork chain are forged from different quality steels and then hardened or tempered in the field according to the material. In individual cases, additional partial induction hardening is carried out. Various types of plastic carriers can be mounted on the individual links and/or welded from steel.

Specifications Fork Chains

The connecting bolts are supplied as standard in the lockring version. Other bolt shapes can also be offered and supplied on request. The table below shows the fork chain in different versions with the respective breaking strength.

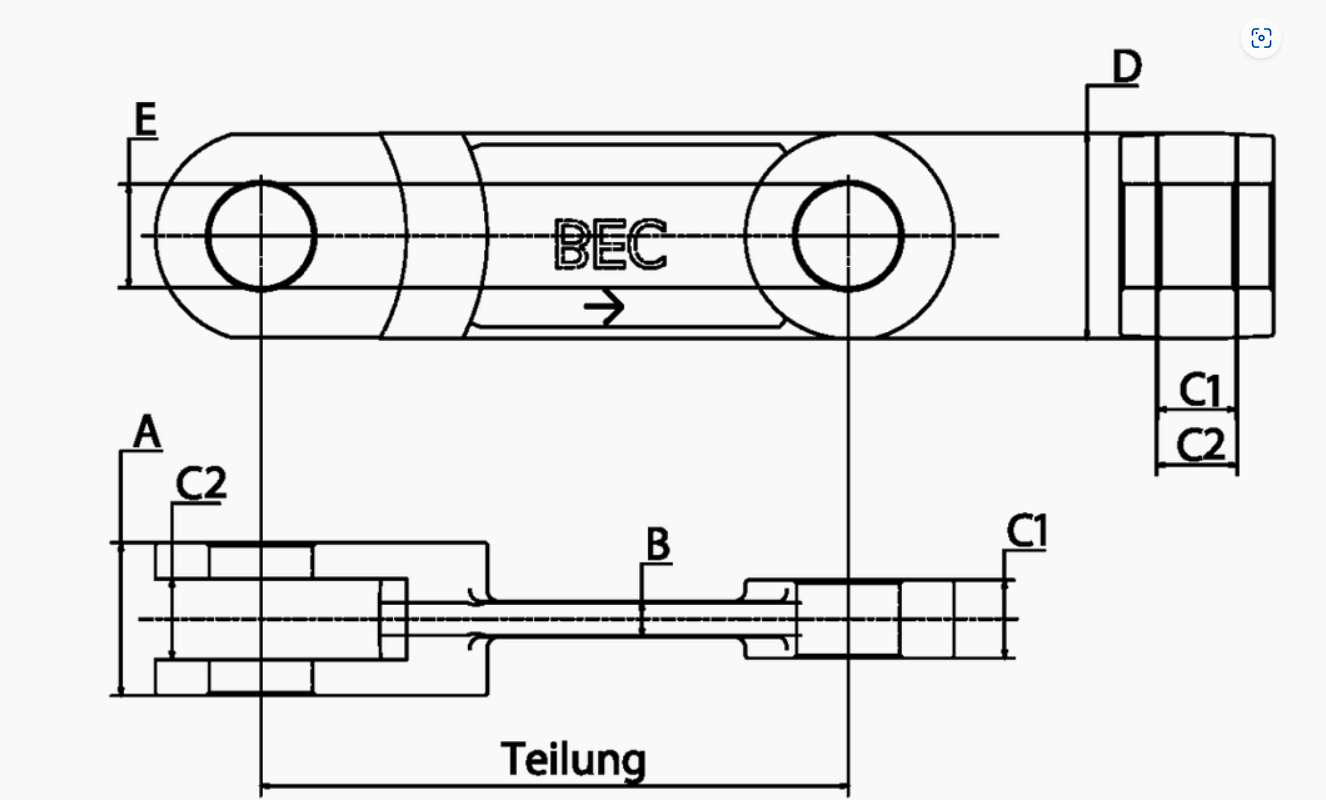

Fork chain (dimensions in mm)
Division	A	B	C1	C2	D	E	58 HRC case-hardened	Remunerated 40 HRC
102	32	10	14	15	36	18	150 kN
102	27	11	12	13	36	16		170 kN
102	28	8	12	13	36	14	130 kN	180 kN
102	24	6	8	9	36	14	100 kN
125	36	10	15	16	36	16		140 kN
142	42	13	19	20	50	25	250 kN	350 kN
142	54	16	25	26	50	25	300 kN	380 kN
142	62	15	29	30	50	25	350 kN	600 kN
150	36	13	15	16	50	25		200 kN
150	36	13	15	16	50	25		300 kN
150	36	13	15	16	50	25		400 kN
160	42	13	20	21	46	20		300 kN
160	50	14	25	26	50	25	300 kN	380 kN
175	62	15	29	30	50	25		600 kN
200	68	18	30	31	60	30	500 kN
200	70	24	30	31	60	30		700 kN
250	70	20	30	33	70	32		750 kN
260	70	20	30	33	70	32	600 kN

Material grades: 20MnCr5, 42CrMo4, V2A, V4A, 1.4713. The breaking strength depends on the respective material. The breaking load depends on the respective material.

Bolt

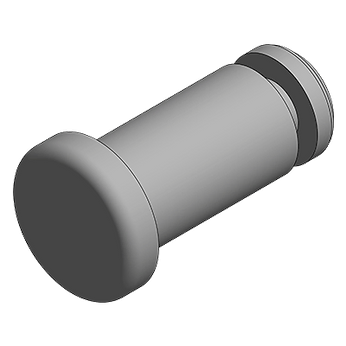

The bolts are available in the following material qualities: 16MnCr5, 42CrMo4i, 1.4034i, 1.4122i, 1.4462, 1.4713. Other qualities on request.

Head Lockbolt

Bolt Bolt

Lockbolt

Head Collar Bolt

Embodiments

We supply the chains with custom-made carriers for horizontal, ascending and vertical conveying paths. When choosing the carriers, the conveying capacity is taken into account. Below are some examples of drop-forged chains with welded-on scrapers.

BT – Form
