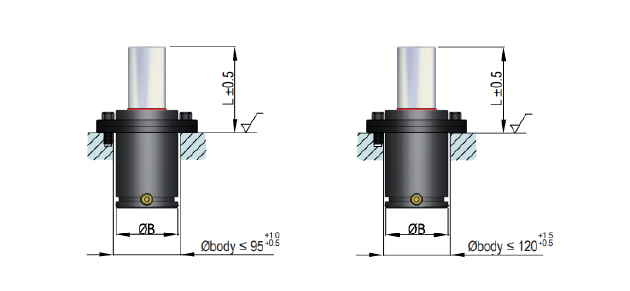

FS Flanges

FS Flanges enable side-mounting of gas springs in industrial assemblies where front or rear flanges are not feasible. Designed for angular or offset installations, they offer flexible alignment options in custom machinery setups and allow optimal force application even in unconventional layouts.

Technical Specifications:

• Material: Zinc-coated Steel or Stainless Steel

• Mount Type: Side-mount bracket

• Angle Options: Multiple configurations available

• Surface Finish: Painted, zinc, or polished

• Max Load Capacity: Up to 2,500 N

• Operating Pressure Resistance: Up to 250 bar

Safety Warning:
Ensure mounting angle matches application geometry to avoid bending stress. Do not overload mounting arms.

Markets Served:

• Agricultural Machinery

• Industrial Packaging Lines

• Custom Equipment Builds

Features and Benefits:

• Adjustable mounting angles

• Space-saving bracket design

• Easy retrofitting

Applications:

• Side-mounted machine access panels

• Lateral hatch supports

• Tilting mechanism support arms
