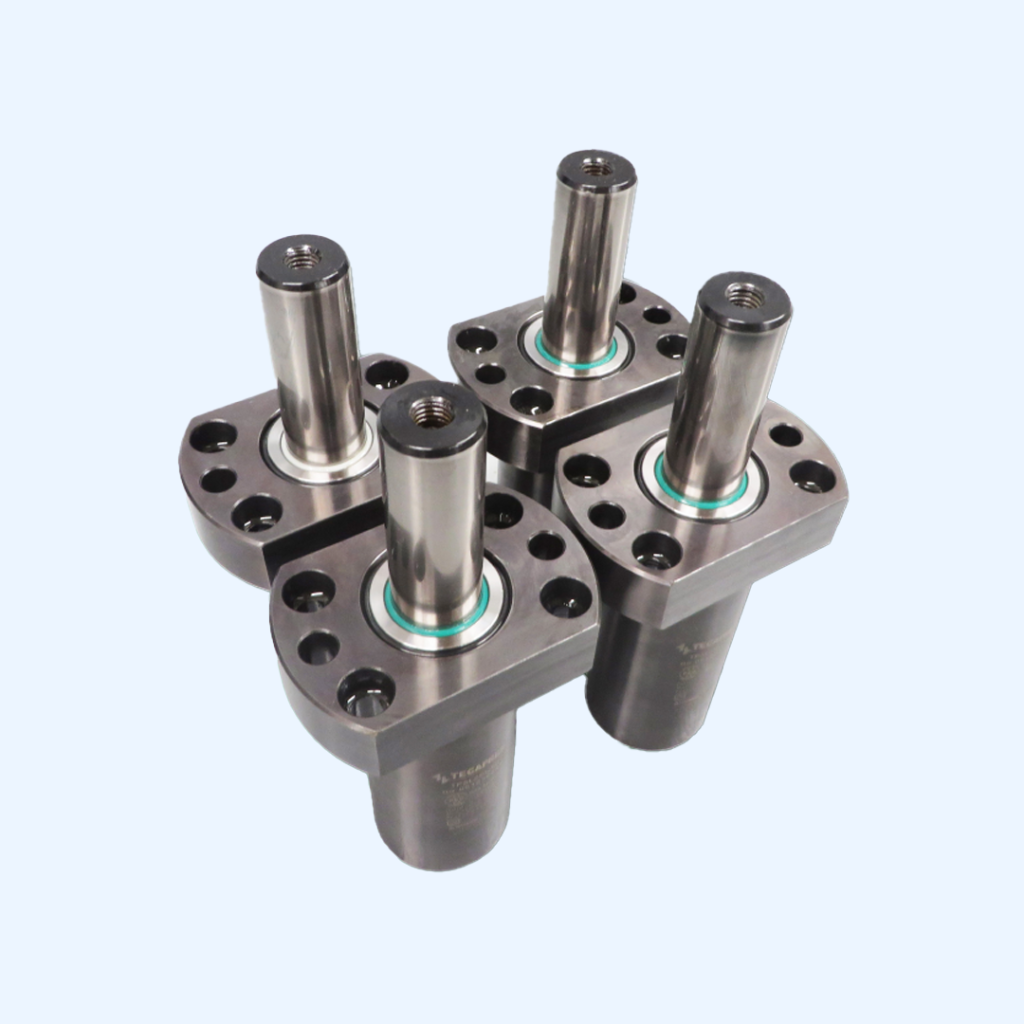

Gas Spring Lifters

Sprint Drives Gas Spring Lifters deliver robust, maintenance-friendly lifting solutions designed for demanding industrial environments. From tooling applications to automation assemblies, our gas spring lifters provide high force output, consistent operation, and safe handling – all with exceptional cushioning performance.

Key Features of Sprint Drives Gas Spring Lifters:

• Powerful Force Output: Available in configurations delivering up to 250 daN, ideal for heavy-duty lifting applications.

• Precision Stroke Options: Custom stroke lengths from 25 mm to 200 mm, offering complete flexibility for your application.

• Final Cushioning Stroke (TPSLR models): Built-in 15 mm damping stroke ensures reduced shock and noise at full extension, enhancing equipment longevity.

• High-Speed Performance: Supports stem speeds up to 1.6 m/s for TPSL models and 1.2 m/s for cushioned lifters.

• Durable & Safe: Complies with PED 2014/68/UE and VDI Safety standards for pressure devices, ensuring reliable operation in high-load environments.

• Temperature Resilience: Functions flawlessly from 0ºC to 80ºC, with minimal force variation due to temperature changes.

• Low Maintenance, High Uptime: Comes with optional maintenance kits (SL100, SL250, SLR250), engineered for long service life.

Technical Specifications:

• Pressure Medium: Nitrogen (N₂)

• Charging Pressure: 25–50 bar (TPSL), up to 80 bar (TPSLR)

• Rod Seal Areas: From 2.54 cm² to 4.91 cm² depending on model

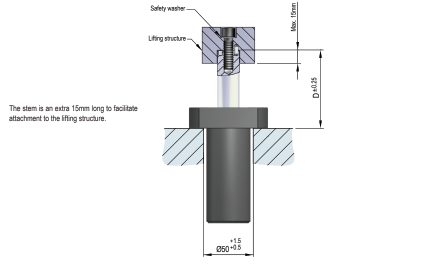

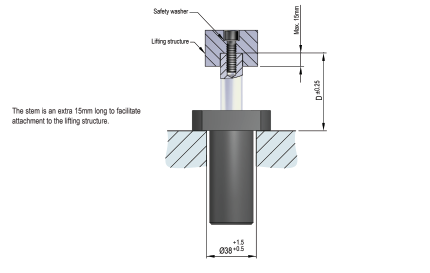

• Safety-First Design: Each unit includes safety washers and dedicated charging ports (M6)

Available Variants:

• Sprint Drives TPSL Gas Spring Lifters

  • Standard models with strokes from 25 mm to 200 mm

  • Force output: 100 daN or 250 daN

  • Compact design for flexible mounting

• Sprint Drives TPSLR Gas Spring Lifters

  • Includes integrated 15 mm cushion stroke for shock-absorbing motion

  • Ideal for high-speed, impact-sensitive applications

Upgrade your motion systems with Sprint Drives – where power meets precision.
