Heavy-Duty Universal Conveyor Rollers

Built for performance, engineered for endurance—Sprint Drives’ Heavy-Duty Universal Conveyor Rollers are the backbone of industrial conveying systems. Whether you’re transporting bulk materials, pallets, or high-speed items, these rollers deliver reliable, quiet, and smooth operation even under the most demanding conditions.

Product Variants

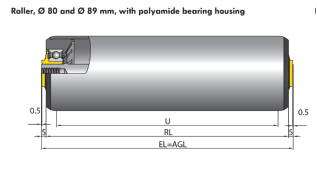

1. Ø 80 & Ø 89 mm Rollers with Polyamide Bearing Housing

Ideal for high-capacity, precision-driven applications, these rollers are equipped with durable polyamide bearing housings for lightweight strength and corrosion resistance. They’re best suited for environments where performance meets hygiene—perfect for food-grade or packaging systems.

Key Features:

• Max. load capacity: Up to 5000 N

• Conveyor speed: 0.8 m/s

• Temperature range: -5°C to +40°C

• Material:

  • Tube: Zinc-plated or stainless steel

  • Shaft: Uncoated, zinc-plated, or stainless steel

  • Seal: RAL1021 polyamide (yellow)

  • Bearing Housing: RAL9005 polyamide (black)

• Bearings: Precision ball bearing 6205 2RZ (greased, play C3)

• Anti-static version: Override protection

• Applications: Packaging lines, parcel handling, food production

2. Ø 60 mm Roller with Polyamide Bearing Housing

A compact yet capable roller designed for systems requiring agility and reduced footprint without compromising load-bearing performance. It’s the go-to for fast-moving logistics and light assembly operations.

Key Features:

• Max. load capacity: 2500 N

• Conveyor speed: 0.8 m/s

• Temperature range: -28°C to +80°C

• Material:

  • Tube: Zinc-plated or stainless steel

  • Shaft: Uncoated, zinc-plated, or stainless steel

  • Seal: RAL1021 polyamide (yellow)

  • Bearing Housing: Zinc-plated steel

• Bearings: Precision ball bearing 6204 2RZ (greased, play C3)

• Anti-static version: <10⁶ Ω

• Applications: Cold chain logistics, e-commerce, automated conveyors

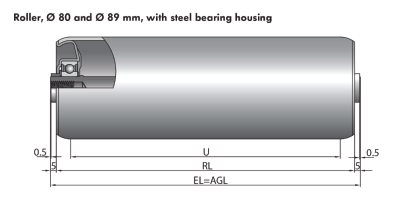

3. Ø 80 & Ø 89 mm Roller with Steel Bearing Housing

Built for maximum durability, these rollers feature a steel bearing housing that ensures high rigidity, thermal resistance, and long service life under heavy-duty applications. Designed for rugged environments like mining, metal fabrication, or warehouse automation.

Key Features:

• Max. load capacity: 5000 N

• Conveyor speed: 0.8 m/s

• Temperature range: -5°C to +40°C

• Material:

  • Tube: Zinc-plated or stainless steel

  • Shaft: Uncoated, zinc-plated, or stainless steel

  • Seal: RAL1021 polyamide (yellow)

  • Bearing Housing: Steel

• Bearings: Precision ball bearing 6205 2RZ (greased, play C3)

• Anti-static version: Override protection

• Applications: Pallet conveyors, industrial manufacturing, distribution centers

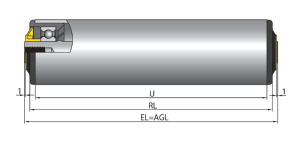

Dimensional Standards

• Tube diameters: 60 mm, 80 mm, 89 mm

• Shaft diameter: 20 mm

• Installation length (EL): RL + 10 mm

• Assembly length (AGL): RL + 10 mm

• Usable length (U): RL – 26 mm

Why Choose Sprint Drives Rollers?

• Built to ISO-standard dimensions for global compatibility

• Available in anti-static versions to prevent electrostatic discharge

• Interchangeable configurations to match your system needs

• Durable, sealed precision bearings ensure long service life with minimal maintenance

In Stock and Ready to Ship

Order your Sprint Drives Heavy-Duty Conveyor Rollers today. Available in multiple diameters, materials, and bearing configurations to suit your exact industrial application.

Need help choosing the right roller? Contact us for expert guidance and custom options.
