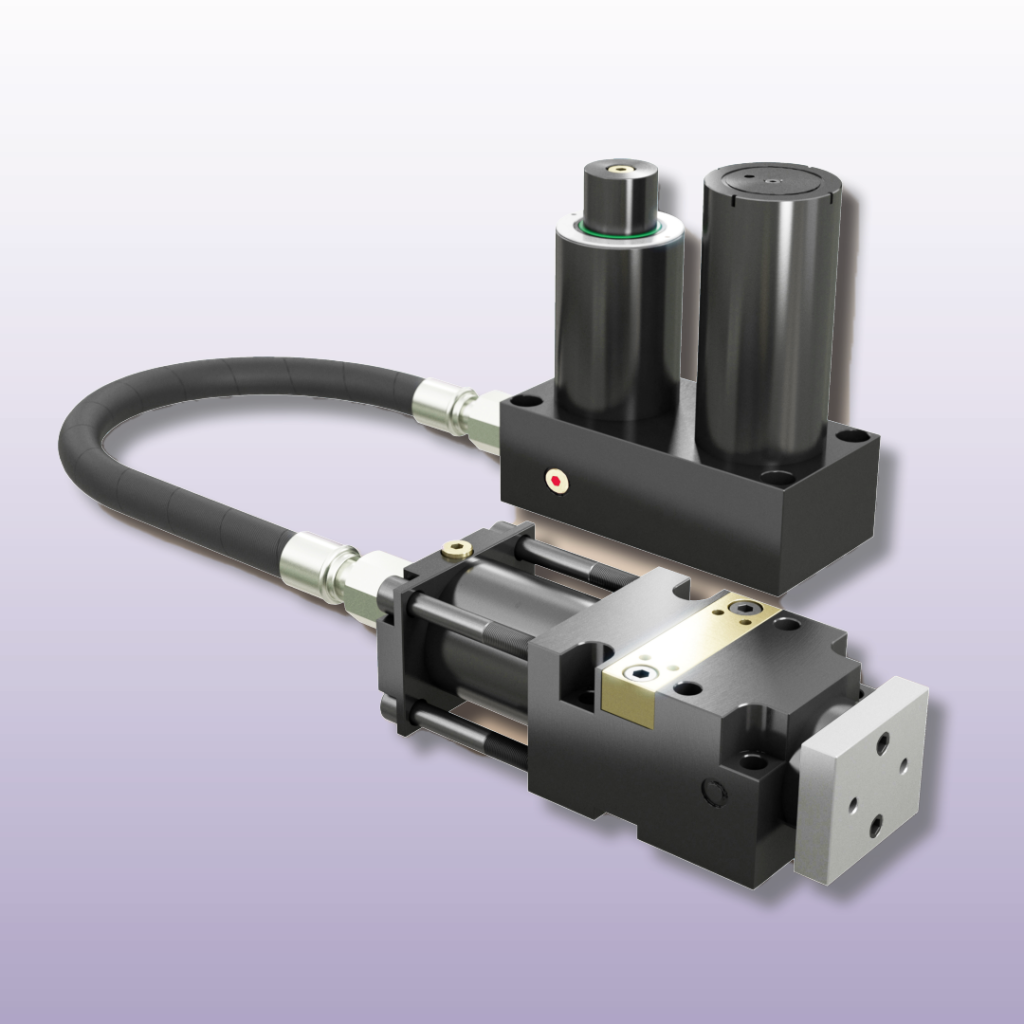

Hydraulic Cams
Upgrade your production performance with Sprint Drives Hydraulic Cams, engineered for exceptional versatility and power in stamping, folding, and punching operations. These cams operate flawlessly in any position or angle, making them the ultimate solution for modern industrial applications that demand precision and adaptability.
Whether in automated manufacturing or specialized tooling, Sprint Drives Hydraulic Cams deliver smooth motion, high punching force, and enhanced safety—all in a compact and modular design.
Why Choose Sprint Drives Hydraulic Cams?
360° Operation – Functions at any angle in space for maximum installation flexibility
Powerful Punching Force – Models available up to 12,000 daN for heavy-duty applications
Anti-Rotation Stability – Compatible with round or shaped punches, with anti-spinning devices for accuracy
Self-Recoiling Mechanism – Built-in gas spring ensures swift return stroke and cycle consistency
Compact, Modular Design – Integrates easily into your existing press systems or can be run with an external hydraulic group
Fail-Safe Accumulator – Absorbs displaced oil in case of blockage, preventing damage or explosion
High-Pressure Hydraulic Connectivity – Leak-proof O-ring fittings ensure safe and durable hose connections
Technical Highlights
Stroke Options: 25 mm, 50 mm, 63 mm, 80 mm
Max Force Options: 3000 daN, 7500 daN, 12000 daN
Working Pressure: Up to 150 Bar
Velocity: Up to 20 m/min
Cycle Frequency: Up to 40 strokes per minute
Gas Spring Overstroke: 15 mm reserve stroke for pressure consistency
Temperature Range: Up to 60°C operating temperature
Installation: Fully guided setup with secure mounting grooves and safety stroke reserves
Industrial Applications
Metal stamping and die-cutting lines
Sheet metal bending and forming stations
High-precision punching tools in automotive and appliance sectors
Flexible press setups requiring angled cam operations
Automated folding and assembly mechanisms
Sprint Drives Hydraulic Cams are particularly ideal for complex operations requiring multi-directional force without repositioning machinery.
Safety First
These systems are designed with built-in protection features like oil and nitrogen safety discs, precision-fitted hose connections, and gas recoil systems. Follow professional installation and filling instructions to ensure reliable and safe operation.
The Sprint Drives Advantage
Sprint Drives delivers European-grade innovation with dependable service and flexible solutions for industrial motion systems. Our hydraulic cam systems are trusted for their performance, reliability, and adaptability in high-pressure environments.
Ready to power up your production?
Choose Sprint Drives Hydraulic Cams — precision where it counts.
