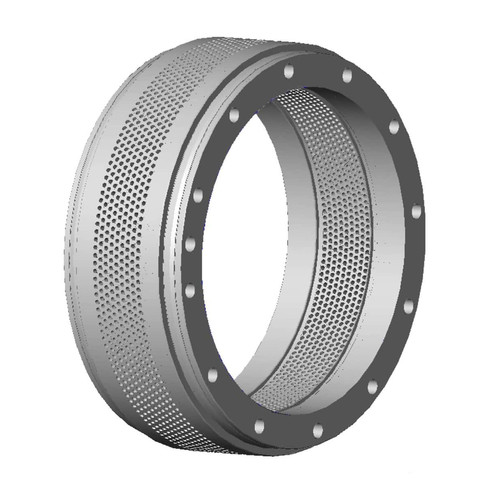

Ring Die
Top-Quality Pellet Die Starts From Design
SprintDrives custom-made dies start with unique designs tailored to each client’s requirements.
Example | Hole Size (mm) | Compression Ratio | Hole Design |
Aquatic Feed | 1.0;1.2;1.5;1.8;2.0 | 15; 18; 20……. | No Relief |
Poultry Feed | 2.5;3.0;3.5;4.0;4.5;5…. | 12;13;14;15… | Variable Relief Hole |
Wood Pellet | 6,8…. | 8,10…… | Multi-Stage Relief or Conical Relief Hole |
Durable Pellet Mill Dies From Advanced Equipment And Processes

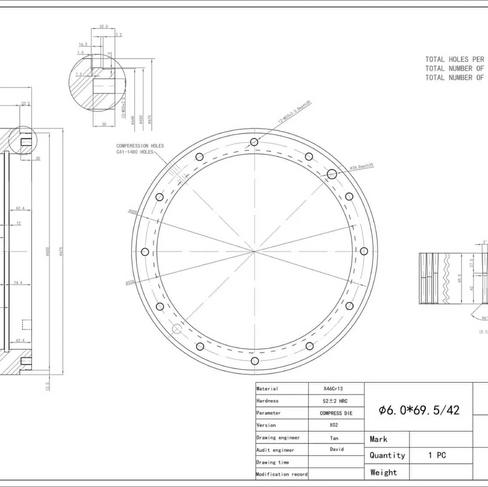

Detailed Drawings:
Only The Best Materials

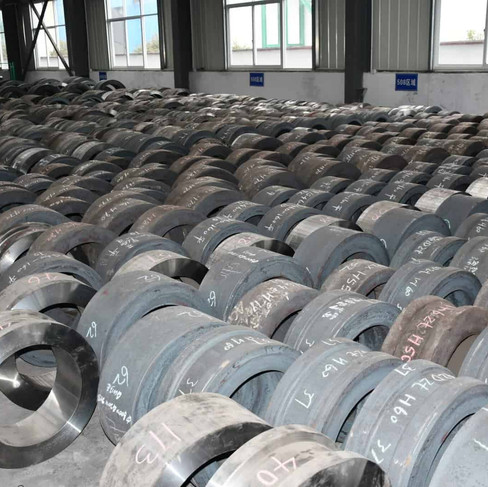

SprintDrive sources only the best steel, X46Cr13, for pellet mill die； Large raw material stocks reduce order lead times to 45 days

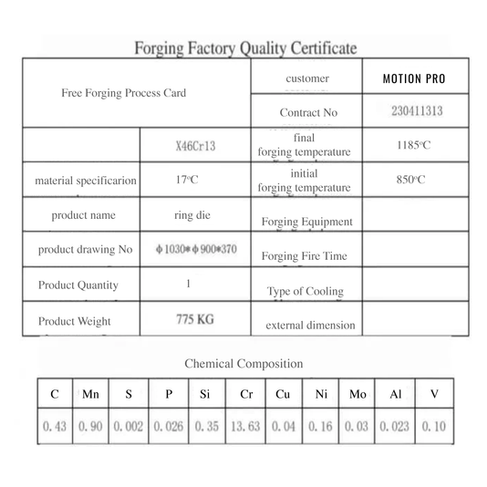

The Best Material: Stock commonly used raw materials for key partners and customers | X46Cr13 Certification Each batch of raw materials includes a certification |

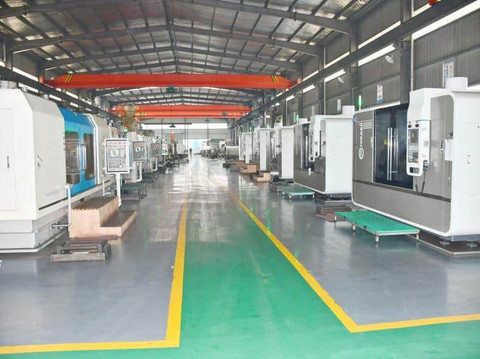

Advanced Equipment And Processing:
SprintDrive sources only the best steel, X46Cr13, for pellet mill die； Large raw material stocks reduce order lead times to 45 days

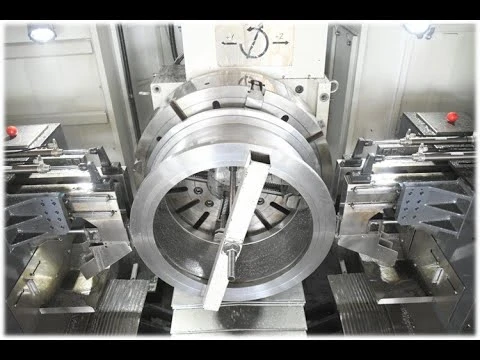

FULLY AUTOMATIC GUN DRILLING— We use fully automatic multi-station deep gun drilling to ensure precise hole size and smoothness.
CHAMBERING SYSTEM— After chambering, the surface smoothness of the die hole can reach 0.8, improving product quality.

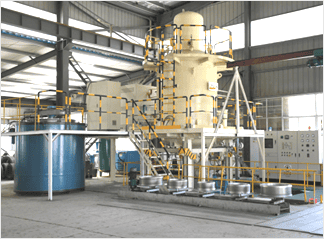

HEAT TREATMENT— Fully automatic vacuum heat treatment furnaces combined with advanced quenching processes ensure the ring die hardness reaches HRC52-55.
Professional Testing For Guaranteed Quality

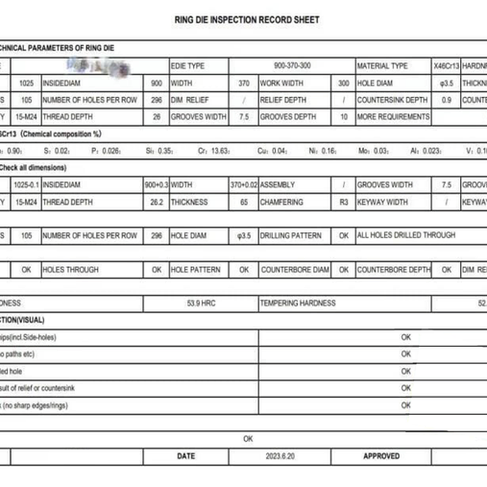

Sprint Drives provides an inspection report for each die leaving the factory
