Screen Belts
We offer high-quality screen mesh belts constructed from polyester monofilaments, providing exceptional stability through lateral and longitudinal reinforcement. Our belts feature completely sealed edges for optimal hygiene and safety.
Ideal for:

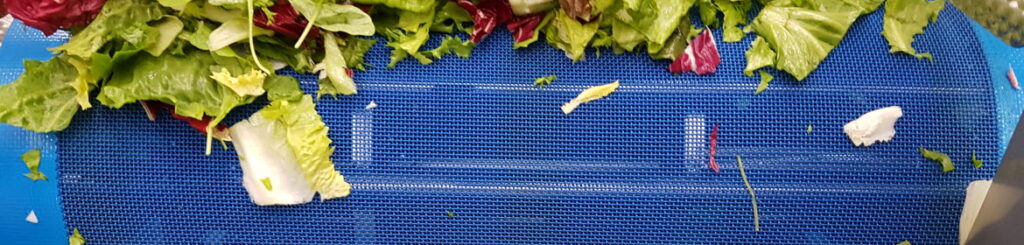

De-watering and drying washed fresh-cut vegetables
Cooling processes
Recycling used washing water
Wastewater treatment
Filtering, sieving, and squeezing applications
Product Range
Our wide range of mesh sizes ensures optimal performance for various product sizes. The belts’ large open area maximizes production efficiency.
Key Benefits:
Customizable mesh sizes
Exceptional hygienic properties
Supports HACCP food safety standards

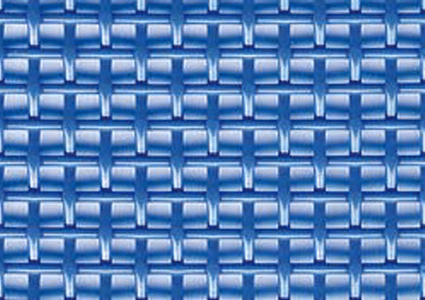

Ultrascreen 1000
Mesh opening 1000 μm
100% polyester monofilament
Light blue colour (non-food colour)
Stabilising strips PVC, Amtel TPE-E
Air permeability 3640 L/dm²/min at Δp=100 Pa
Water permeability 700 to 2060 mm/s*
Open area 30 to 60%*
Food standards EC1935/2004, FDA
Belt properties determined by the properties of stabilising strips and accessories
Recyclable version available
Ultrascreen 2000
Mesh opening 2000 μm
100% polyester monofilament
Light blue colour (non-food colour)
Stabilising strips PVC, Amtel TPE-E
Air permeability 5080 L/dm²/min at Δp=100 Pa
Water permeability 700 to 2060 mm/s*
Open area 30 to 60%*
Food standards EC1935/2004, FDA
Belt properties determined by the properties of stabilising strips and accessories
Recyclable version available

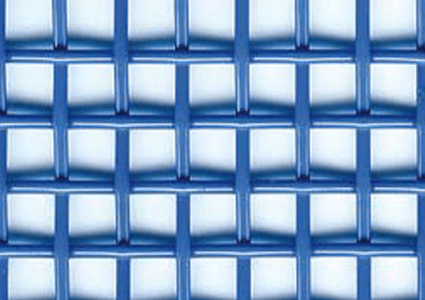

Ultrascreen 3000
Mesh opening 3000 μm
100% polyester monofilament
Light blue colour (non-food colour)
Stabilising strips PVC, Amtel TPE-E
Air permeability 6000 L/dm²/min at Δp=100 Pa
Water permeability 700 to 2060 mm/s*
Open area 30 to 60%*
Food standards EC1935/2004, FDA
Belt properties determined by the properties of stabilising strips and accessories
Recyclable version available

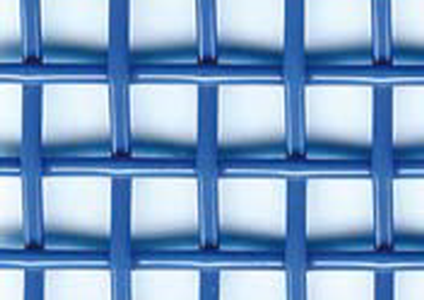

Ultrascreen 4000
Mesh opening 4000 μm
100% polyester monofilament
Light blue colour (non-food colour)
Stabilising strips PVC, Amtel TPE-E
Air permeability 6540 L/dm²/min at Δp=100 Pa
Water permeability 700 to 2060 mm/s*
Open area 30 to 60%*
Food standards EC1935/2004, FDA
Belt properties determined by the properties of stabilising strips and accessories
Recyclable version available

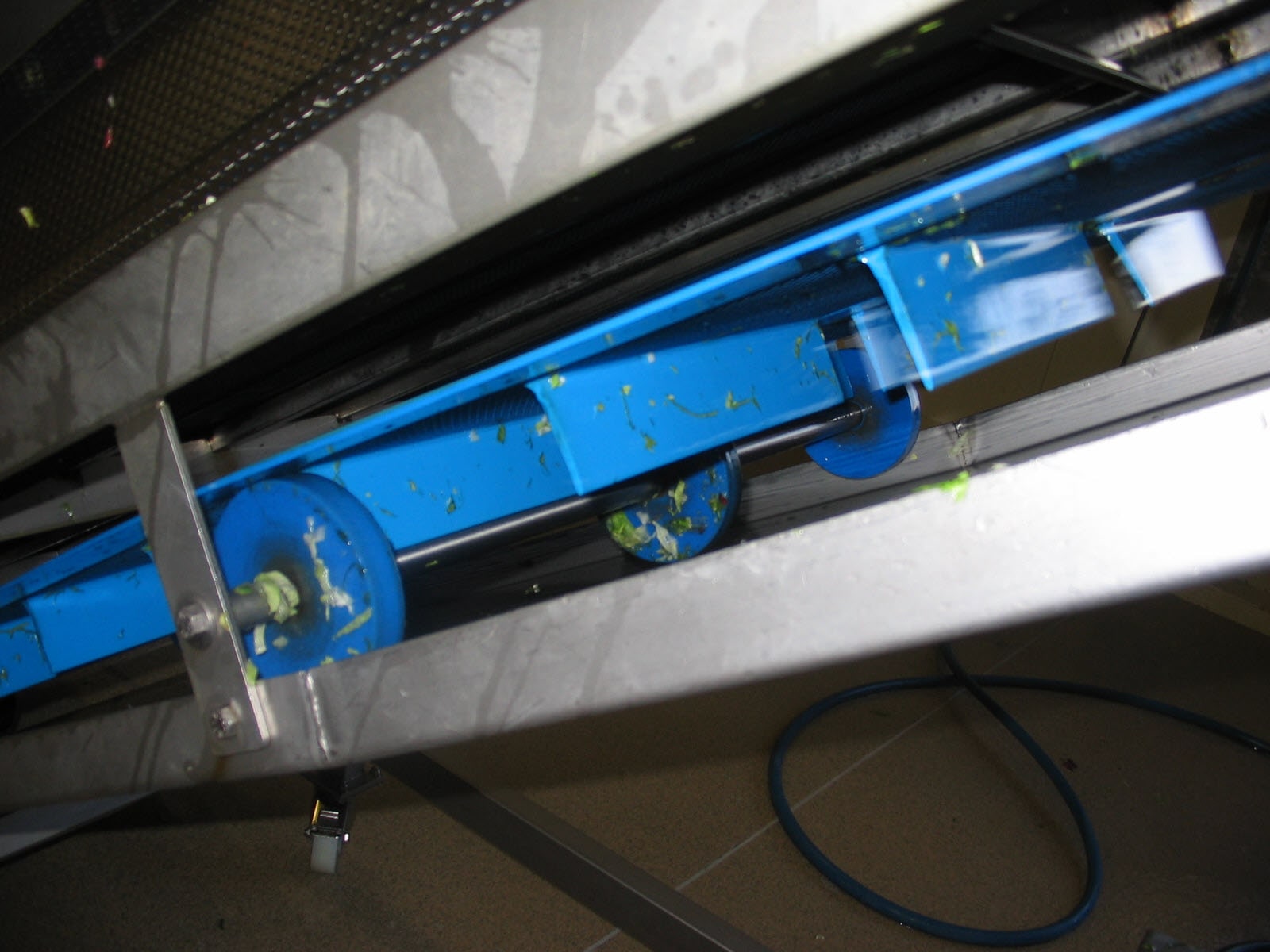

Fabrication & Accessories
Various belt accessories can be applied:
Cleats for inclined conveying
Bordoflex corrugated sidewalls to prevent product spillage
Guide ropes to assist in tracking
All belts have completely-closed belt edges for improved hygiene and safety
