Slide Bearing Conveyor Rollers

Where lightweight, low-noise, and maintenance-free performance is key, Sprint Drives’ Slide Bearing Conveyor Rollers deliver. These rollers are optimized for gravity and light-duty powered conveyor systems, offering exceptional rolling properties, corrosion resistance, and customizable materials to suit various applications.

Product Overview

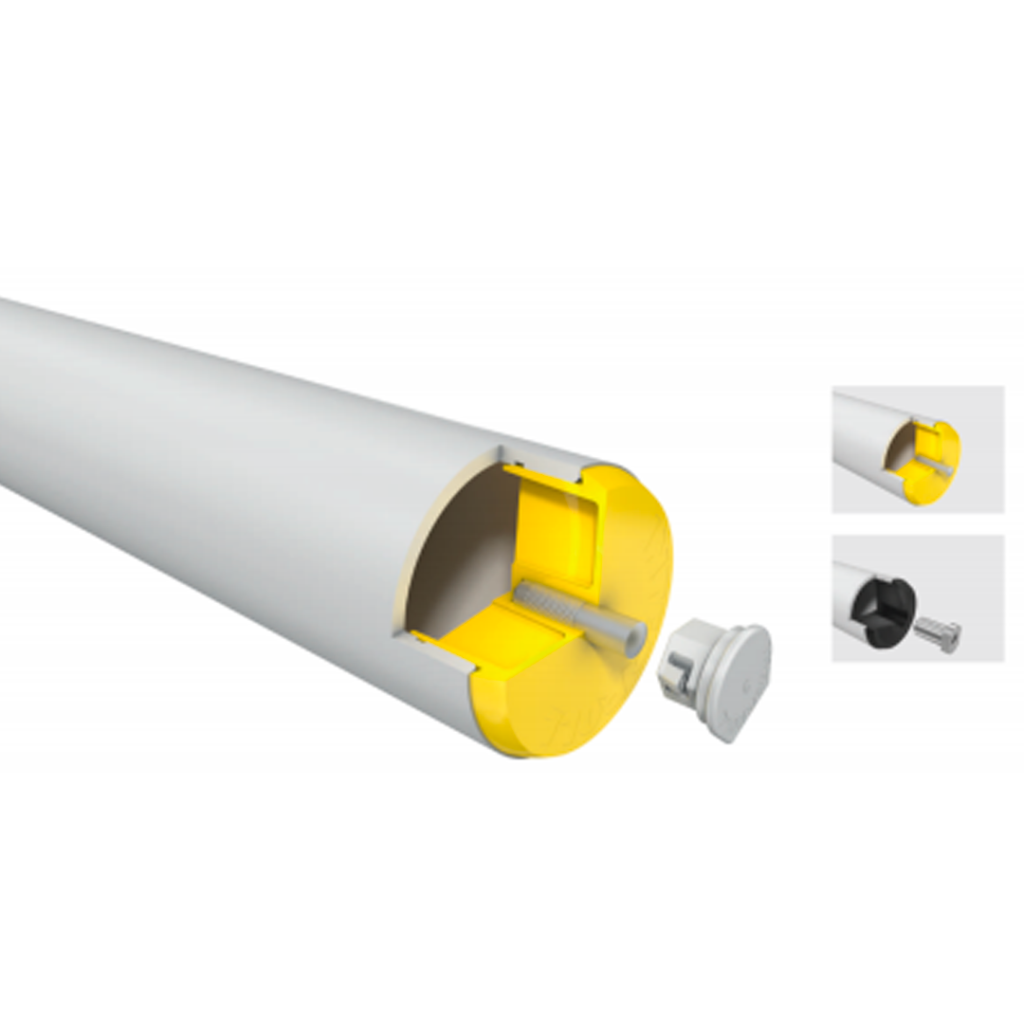

Designed for quiet and smooth transport, Sprint Drives slide bearing rollers are built with a polymer bushing system instead of traditional ball bearings. This provides low-friction rolling ideal for handling lightweight items in distribution centers, airport logistics, postal systems, or food and beverage environments.

Available Variants

1. Ø50 mm Roller – Shaft Pin Ø6 mm, Stainless Steel, Hex Fastening

• Platform: 1500

• Maximum load capacity: 120 N

• Max. conveyor speed: 0.8 m/s

• Temperature range:

  • Steel tube: -28°C to +40°C

  • PVC tube: -5°C to +40°C (note: higher ambient temps or static loads may deform the roller)

• Fastening method: Hexagon, 11 mm (+0.3 / –0.8 mm)

• Shaft release: Shaft pin Ø6 mm stainless steel

• Shaft connection: Permanently fixed to bearing housing

• Tube options:

  • Zinc-plated steel, stainless steel, aluminum

  • PVC (stone gray – RAL7030 or sky blue – RAL5015)

• Bearing housing: Polypropylene, RAL1023 (traffic yellow)

• Slide bushing: Polymethylene, RAL7030 (stone gray)

• Bearing type: Slide bearing

• Applications: Intralogistics, lightweight cartons, packaging lines, food conveyors

2. Ø50 mm Roller – Shaft Pin Ø12 mm with M8 Female Thread, Stainless Steel

• Platform: 1520

• Maximum load capacity: 1100 N

• Max. conveyor speed: 0.8 m/s

• Temperature range: -28°C to +40°C (steel tube only)

• Fastening method: Round hole for M8 screw

• Shaft release: Shaft pin Ø12 mm, M8 female thread

• Tube options:

  • Stainless steel

  • PVC (RAL7030 or RAL5015)

• Bearing housing: Polyoxymethylene, RAL9005 (jet black)

• Slide bushing: Polymethylene, RAL7030 (stone gray)

• Bearing type: Slide bearing

• Applications: Packaging and sorting systems, washdown or hygiene-critical zones, compact roller bed designs

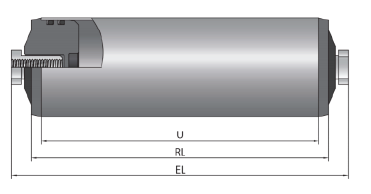

Dimensional Specs

Why Choose Sprint Drives Slide Bearing Rollers?

• Low-noise & low-friction performance

• Maintenance-free operation

• Lightweight designs for fast-moving logistics systems

• Anti-corrosion options using stainless steel and PVC

• Available in multiple fastening and shaft connection variants

• Custom finishes and diameters upon request

Order Now from Sprint Drives

Our Slide Bearing Conveyor Rollers are engineered to deliver reliable, cost-effective performance across a range of lightweight applications. Choose the configuration that fits your system or contact our team for custom solutions.
