Sprockets to Forged Fork Chains

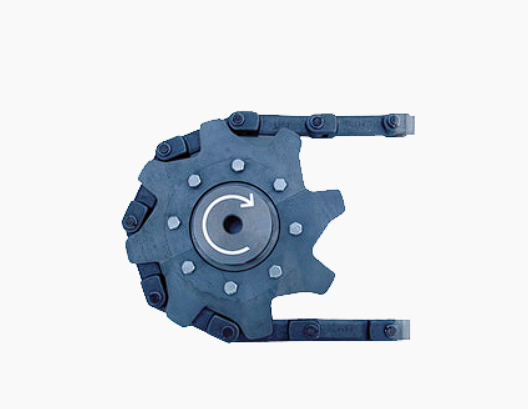

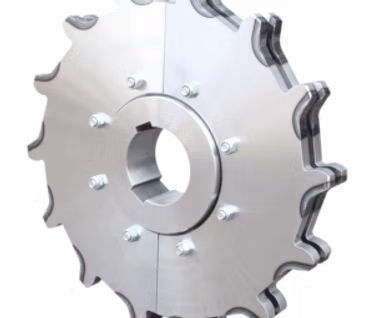

Sprockets to fork chain in the standard version consist of a fixed hub body as well as screwed-on and replaceable tooth segments. The tooth segments are split and in most cases are supplied with hardened tooth flanks. The following sprockets are available from stock:
Sprockets for fork chains (dimensions in mm) |  Wheel centre with replacable tooth segments (8teeths) | |||||
Pitch Ø / Number of segments per sprocket | ||||||
Division | 6 teeth | 7 teeth | 8 teeth | 9 teeth | 10 teeth | |
102 | Ø204,00 / 4 | Ø235,09 / 4 | Ø265,49 / 4 | Ø298,23 / 4 | Ø330,08 / 4 | |
125 | Ø250,00 / 4 | Ø288,10 / 4 | Ø326,64 / 4 | Ø365,48 / 4 | Ø404,51 / 4 | |
142 | Ø284,00 / 4 | Ø327,28 / 4 | Ø371,06 / 8 | Ø415,18 / 6 | Ø459,52 / 4 | |
150 | Ø300,00 / 6 | Ø345,71 / 4 | Ø391,97 / 8 | Ø438,57 / 4 | Ø485,42 / 10 | |
160 | Ø320,00 / 4 | Ø368,76 / 4 | Ø418,10 / 8 | Ø467,81 / 4 | Ø517,77 / 4 | |
200 | Ø400,00 / 4 | Ø460,95 / 4 | Ø522,62 / 8 | Ø584,76 / 4 | Ø647,21 / 4 |
Calculating Pitch Circle Diameter
z = number of teeth of the sprocket, n = pitch circle factor | |||||||||
Pitch circle Ø (in mm) = chain pitch x n | |||||||||
Head circle Ø sprocket = pitch circle Ø + (bridge height fork link x factor 0.6) | |||||||||
z | n | z | n | z | n | z | n | z | n |
6 | 2 | 9 | 2.9238 | 12 | 3.8637 | 15 | 4.8097 | 18 | 5.7588 |
7 | 2.3048 | 10 | 3.2361 | 13 | 4.1786 | 16 | 5.1258 | 19 | 6.0755 |
8 | 2.6131 | 11 | 3.5495 | 14 | 4.494 | 17 | 5.4422 | 20 | 6.3925 |
Sprockets for trough conveyor chain

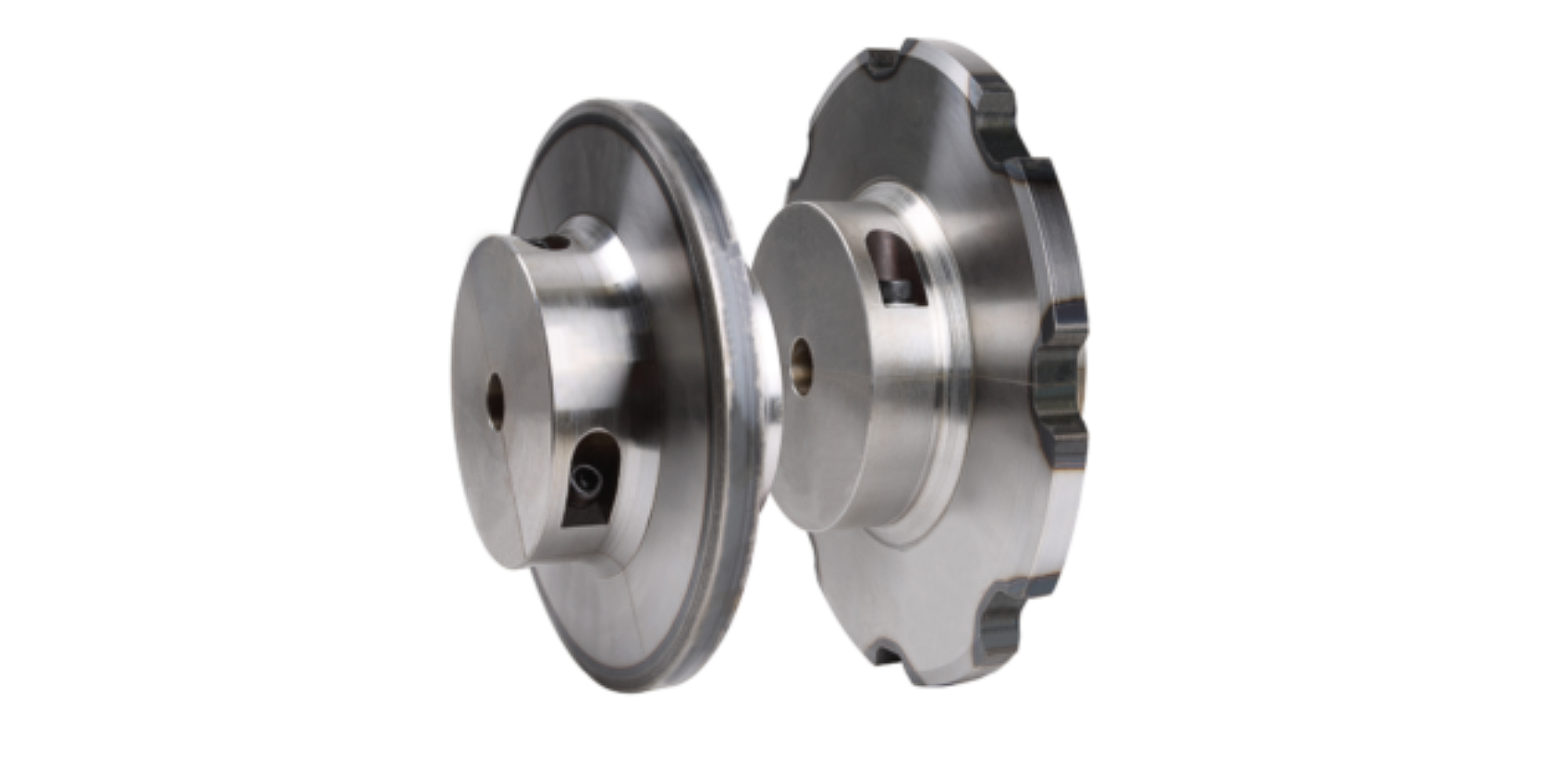

The sprockets for trough conveyor chains are available in both one-piece and two-piece versions. We stock some of the wheels with hardened and enlarged tooth gap clearance. Below is a list of in-stock versions:
Sprockets Trough conveyor chains (dimensions in mm) |  | |||||
Division | Clear width | Bushing Ø | Pitch circle Ø (p x n) | |||
6 teeth | 8 teeth | 7 teeth | ||||
63 | 22 | 18 | 126 | 164.63 | – | |
80 | 22 | 18 | 160 | 209.05 | – | |
100 | 22 | 18 | 200 | 261.31 | – | |
125 | 25 / 30 / 35 / 45 | 20 / 26 / 30 | 250 | 326.64 | – | |
150 | 30 / 45 | 22 / 30 | – | – | 345.71 | |
160 | 30 / 45 | 30 | 320 | 418.1 | – |
Calculating Pitch Circle Diameter
z = number of teeth of the sprocket, n = pitch circle factor | |||||||||
Pitch circle Ø (in mm) = chain pitch x n | |||||||||
z | n | z | n | z | n | z | n | z | n |
6 | 2 | 9 | 2.9238 | 12 | 3.8637 | 15 | 4.8097 | 18 | 5.7588 |
7 | 2.3048 | 10 | 3.2361 | 13 | 4.1786 | 16 | 5.1258 | 19 | 6.0755 |
8 | 2.6131 | 11 | 3.5495 | 14 | 4.494 | 17 | 5.4422 | 2 |
