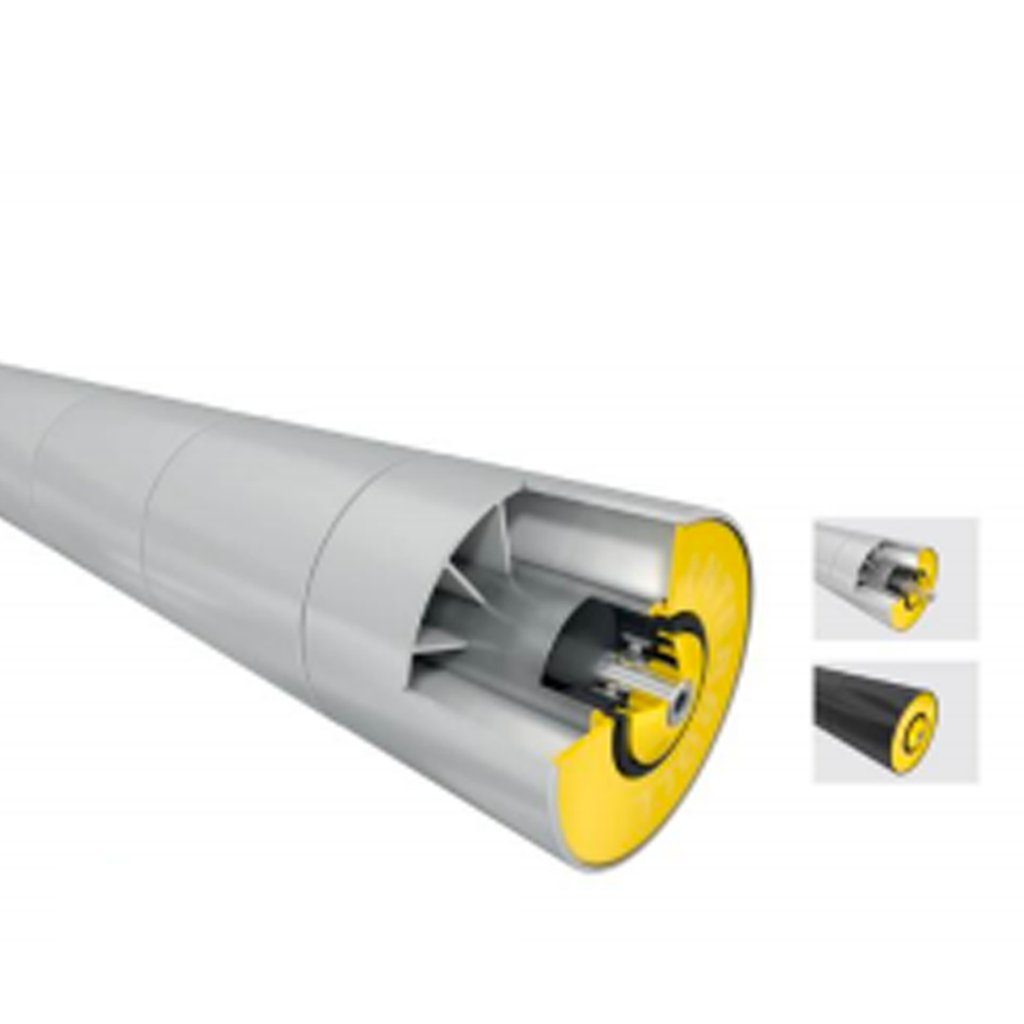

Tapered Universal Conveyor Roller

Tapered Universal Conveyor Roller – 1.8° Taper, RAL7030 Gray, Standard Anti-Static Version

Product Overview
Sprint Drives’ Tapered Universal Conveyor Roller with 1.8° conicity and stone gray RAL7030 finish is engineered for high-performance applications in curved conveyor systems. Ideal for inner curve radii of 800 or 850 mm, this roller ensures smooth, consistent flow of materials around curves without compromising stability or load handling.

Technical Highlights

• Load Capacity: Up to 500 N

• Max Conveyor Speed: 2 m/s

• Temperature Range:

  • With greased ball bearing: –5 to +40 °C

  • With oiled ball bearing: –28 to +20 °C

• Impact-Resistant: Yes

• Anti-Static Version: No

Material Details

• Tube: Zinc-plated steel, stainless steel, or aluminum

• Shaft: Uncoated steel, zinc-plated steel, or stainless steel

• Tapered Cone Material: Polypropylene

• Bearing Housing: Polyamide (RAL9005 Jet Black)

• Seal and End Cover: Polypropylene (RAL1021 Rape Yellow)

• Bearing Type: Precision sealed ball bearing 6002 2RZ, with stainless steel option

Applications
Suitable for light-to-medium load curved conveyor systems in packaging, food processing, and intralogistics environments. Its RAL7030 stone gray finish provides a professional look suited to clean, modern installations.

Tapered Universal Conveyor Roller – 1.8° Taper, RAL9005 Jet Black, Anti-Static Version

Product Overview
Sprint Drives’ Anti-Static Tapered Conveyor Roller offers all the features of the standard 1.8° taper design with the added benefit of anti-static capability (<10⁶ Ω). Finished in sleek RAL9005 Jet Black, this roller is optimized for conveying sensitive electronic components and materials that require electrostatic discharge protection.

Technical Highlights

• Load Capacity: Up to 500 N

• Max Conveyor Speed: 2 m/s

• Temperature Range:

  • Greased bearing: –5 to +40 °C

  • Oiled bearing: –28 to +20 °C

• Anti-Static Capability: Yes

• Impact-Resistant: Yes

Material Details

• Tube and Shaft: Zinc-plated steel, stainless steel, or aluminum

• Tapered Cone and Seal: Polypropylene (RAL1021 Rape Yellow)

• Bearing Housing: Polyamide (Jet Black, RAL9005)

• End Cap: Polypropylene

Applications
Ideal for ESD-sensitive environments such as electronics assembly, component testing, and cleanroom applications. This roller ensures material handling safety with its anti-static features, while delivering Sprint Drives’ hallmark reliability.

Tapered Universal Conveyor Roller – 2.2° Taper, RAL7030 Gray, Shorter Curve Radius

Product Overview
Designed for tighter curves, the Sprint Drives Tapered Roller with 2.2° conicity and RAL7030 stone gray finish is built for 690 mm inner curve radii. This model provides precise angular alignment for small-radius conveyor systems while maintaining robust performance across demanding environments.

Technical Highlights

• Load Capacity: 500 N

• Max Conveyor Speed: 2 m/s

• Curve Radius Compatibility: 690 mm

• Temperature Range:

  • Greased bearing: –5 to +40 °C

  • Oiled bearing: –28 to +20 °C

• Impact-Resistant: Yes

• Anti-Static Version: Not Available

Material Details

• Tube: Zinc-plated steel, stainless steel, or aluminum

• Shaft: Stainless steel or plated/uncoated steel

• Cone & Seal: Polypropylene

• Bearing Housing: Polyamide, jet black

• End Cap: Metal disk, not completely closed – optimized for compact installations

• Bearing Type: Ball bearing 6002 2RZ, with stainless option and C3 play version

Applications
Tailored for compact conveyor curves in packaging lines, sorting systems, and airport logistics. The 2.2° taper ensures minimal lateral gaps between rollers, allowing seamless transport of small to medium packages through tight bends.

Sprint Drives – Performance, Precision, and Reliability

All Sprint Drives tapered conveyor rollers are precision-engineered to deliver long service life, high performance under load, and modular compatibility with a wide range of conveyor platforms. These rollers are designed to meet the stringent requirements of automated systems with options for anti-static protection, impact resistance, and corrosion-resistance through stainless steel components.

Let Sprint Drives be your partner in efficient material handling — tailored to your application’s curve, speed, and load requirements.
