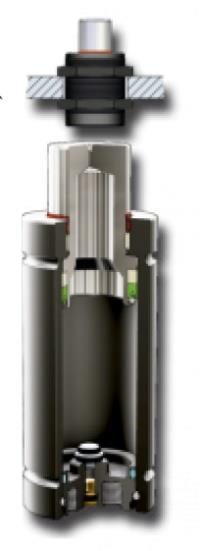

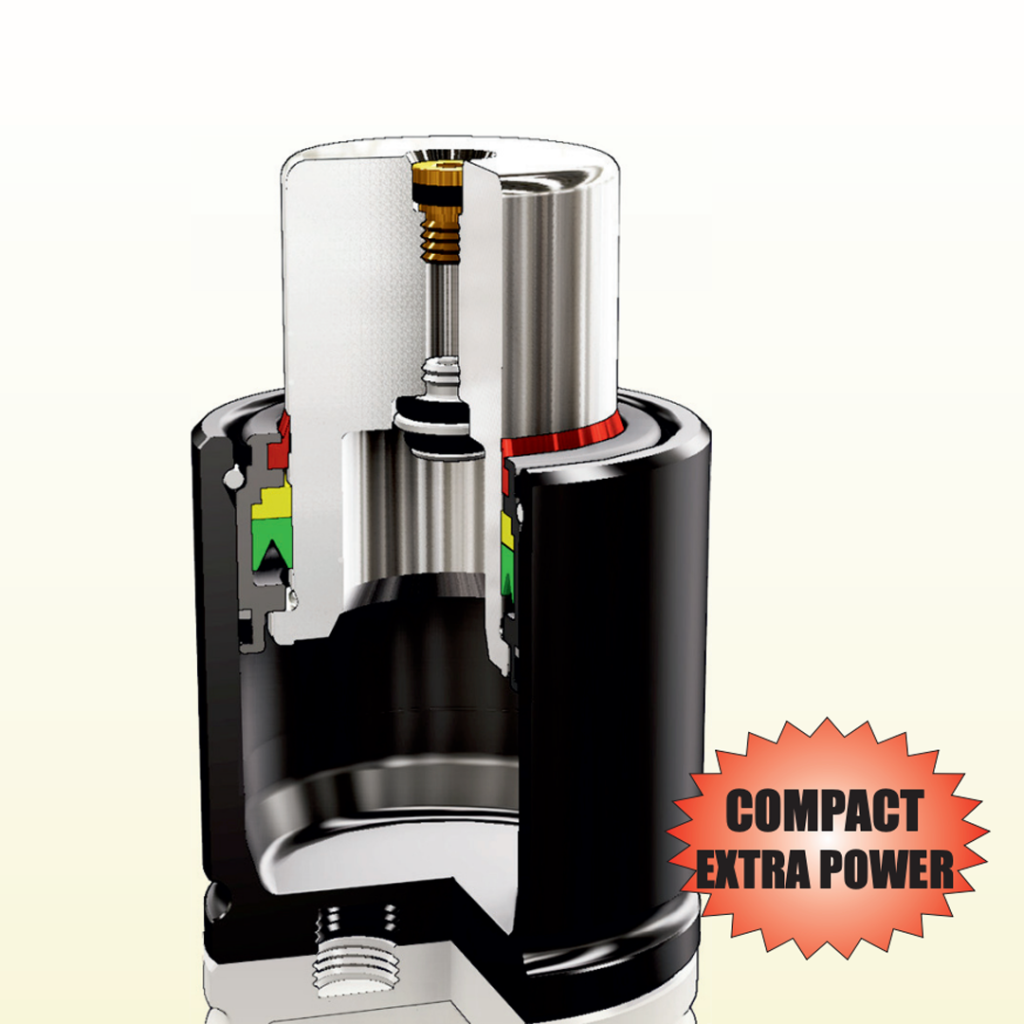

Titan Series Gas Springs

The Titan Series Gas Springs from Sprint Drives are engineered for extreme-duty environments requiring maximum strength, durability, and reliability. Designed for lifting, lowering, and precision dampening in heavy equipment, they offer high output forces and are ideal for rugged applications in agricultural machinery, industrial manufacturing, and large-scale access systems. Their robust construction makes them suitable for continuous operation under harsh environmental conditions.

Technical Specifications:

• Force Range: 300 – 3,000 N

• Stroke Length: 40 – 500 mm

• Cylinder Material: Nitrided Steel or 316L Stainless Steel

• Rod Material: Heavy-duty chrome-plated or stainless

• Mounting Style: Reinforced Eyelet, Threaded Ends, or Custom Brackets

• Dampening Options: Fixed, Progressive

• Operating Temperature: -30 °C to +100 °C

• Valve Type: Rechargeable with nitrogen valve

• Max Operating Pressure: Up to 350 bar

Safety Warning:
Install only in designated orientation and never exceed rated force capacity. Do not tamper with pressurized systems or expose to open flame. Ensure secure mounting in high-vibration environments.

Markets Served:

• Agricultural and Farm Equipment

• Heavy-Duty Industrial Machinery

• Mining and Construction Vehicles

• Transportation Equipment

Features and Benefits:

• Designed for high-load, long-cycle performance

• Resistant to corrosion, wear, and temperature extremes

• Extra-thick rod for maximum durability

• Custom pressure tuning available

• Supports oversized lids, hatches, and doors

Applications:

• Load-bearing hatch support in farm machinery

• Heavy access door assist in mining trucks

• Industrial gate dampening systems

• Overhead canopy or engine hood supports in construction equipment
