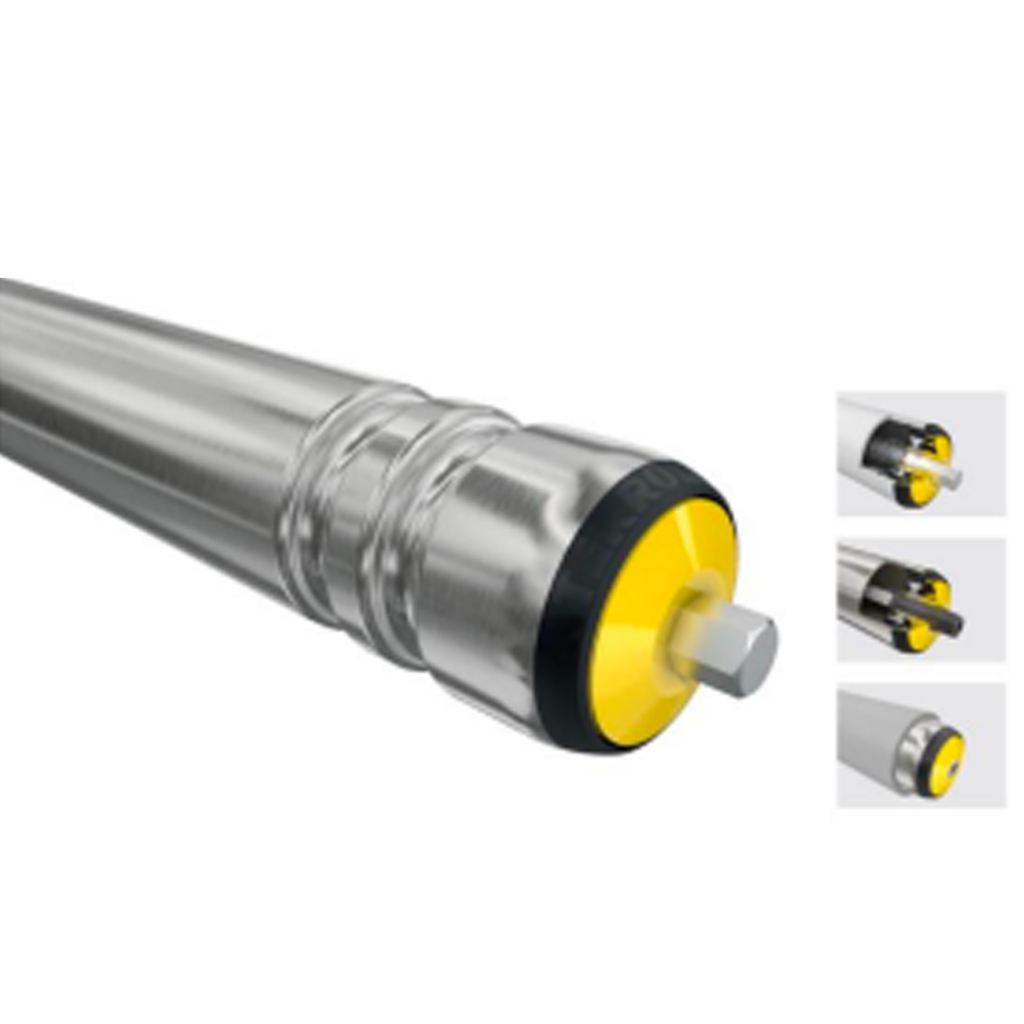

Universal Conveyor Roller

High-Performance, Versatile, and Engineered for Industrial Excellence

Sprint Drives presents the Universal Conveyor Roller, an essential component designed to meet the rigorous demands of modern material handling systems. Built with robust materials and precision-engineered components, these rollers are suitable for a wide array of industrial applications—from warehouse automation to manufacturing lines.

Key Features & Benefits:

1. High Load Capacity & Speed

• Load Capacity: Up to 2000 N, making it ideal for heavy-duty transport systems.

• Conveyor Speed: Supports speeds of up to 2.0 m/s, ensuring efficient material movement in high-throughput operations.

2. Durable in Variable Conditions

• Temperature Range:

  • Greased Bearings: Operational from –5°C to +40°C.

  • Oiled Bearings: Extended range from –28°C to +20°C.

  • PVC Tube: Maintains integrity to –5°C but requires consideration of deformation risks above +30°C under static loads.

• Adaptability to various industrial environments ensures consistent performance even in cold storage or mildly heated facilities.

3. Premium Materials for Longevity

• Tube Options:

  • Zinc-plated steel, stainless steel, or aluminum—offering corrosion resistance and strength.

  • PVC Tubes: Available in RAL7030 (stone gray) or RAL5015 (sky blue), suitable for specific visual coding or hygienic applications.

• Shaft Material: Uncoated, zinc-plated, or stainless steel, with options for tapered shaft-shuttle in antistatic polyamide—ideal for electronics manufacturing or dust-sensitive environments.

4. Advanced Bearing System

• Fitted with precision steel ball bearings (6002 2RZ or 6002 2RZ stainless steel) ensuring quiet, smooth operation with minimal maintenance.

• Bearing Housing: Constructed from Polyamide (RAL9005 – jet black) for impact resistance and stability.

• Seals: Polypropylene (RAL1021 – rape yellow), providing reliable protection against contaminants.

5. Customizable Shaft Configurations
Sprint Drives understands that flexibility is key. Our rollers are available in:

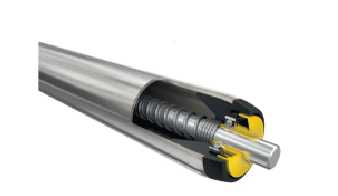

• Spring-loaded shaft

• Flat shaft

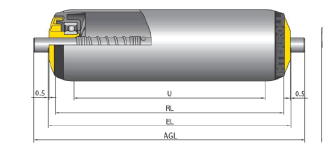

• Shaft length options include RL (Reference Length), EL (Installation Length), AGL (Total Shaft Length), and U (Usable Tube Length).

These designations ensure seamless integration into existing conveyor systems, with accurate tolerances and fitment.

Ideal Applications:

• Warehousing and logistics

• Airport baggage handling systems

• Food and beverage transport (with stainless or PVC tubes)

• Manufacturing and assembly lines

• Electronics and clean room environments (with antistatic shaft options)

Why Choose Sprint Drives’ Universal Conveyor Rollers?

Sprint Drives is committed to delivering top-tier industrial automation components. Our Universal Conveyor Rollers are not only versatile and durable but also engineered with precision to meet the evolving demands of industrial transport systems. Whether you’re upgrading your existing conveyor or designing a new one, our rollers provide the reliability and adaptability your operations need.

Contact us today to configure the perfect solution for your specific requirements. Backed by industry expertise and a reputation for excellence, Sprint Drives delivers performance you can count on.
